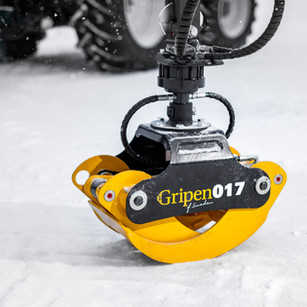

Our newest lighter grapple made for forest trailers and smaller forwarders. The design of the claws allows the logs to roll gently, filling the grapple efficiently, and ensuring the load to stay in place. The grapple works quickly and easily on all kinds of materials.
Grapple dimensions | 017 | 024 | |
|---|---|---|---|
Weight | kg | 95 | 140 |
Max load | kg | 2000 | 2500 |
Loadarea | m2 | 0,17 | 0,24 |
Min load diameter | mm | 90 | 100 |
Heights, open grapple | mm | 730 | 728 |
Height, closed grapple | mm | 470 | 531 |
Width outerclaw | mm | 325 | 380 |
Max width | mm | 370 | 439 |
Maximum grapple opening | mm | 1040 | 1365 |
Length, closed grapple | mm | 740 | 788 |
Closing time at 70 L/min | sek | 0,9 | 1,6 |
Opening time at 70 L/min | sek | 0,55 | 1,0 |
Tip force, tip to tip | kN | 9,3 | 12,3 |
Max working pressure | MPa | 21 | 23 |
